A review of the Lishuai LED508AS lighting kit

Lishuai LED508AS
Lighting with the Lishuai LED508AS kit

We’ve seen a gradual move away from tungsten video lighting for a number of years now – and for all sorts of reasons. Firstly there’s the ecological issue about using tungsten lights. Burning a metal filament within a gaseous-free glass chamber is not the most efficient way to generate a light source. Most of the energy in this process is used up in creating heat (as tungsten ignites a such high temperatures), which is not only wasteful but also a really unwelcome guest on any film set if you happen to be sat in front of a tungsten lamp for any length of time. The more lamps you use the greater heat is generated which means you either suffer from the heat or have to use more energy by introducing cooling machinery – which in turn creates other unwanted side effects for the sound guy.

The heat issue also means you are limited to how close you can light your subjects – especially if you are filming subjects which are really not that keen on being heated. For instance, I’m sure there are many forms of wildlife who will act very unnaturally under heat-omitting light sources. I’m sure there are even some who would expire under them.

Apart from the high running costs and heat side-effects, Tungsten bulbs are also very delicate – especially when hot. In this state they can also be very dangerous and tend to explode into thousands of tiny molten glass fragments which is why you should never use them without a safety glass in place.

So with all this going against the tungsten light it’s really surprising that they have lasted this long and are in fact still manufactured today. Whilst various alternative light sources have been with us for some time they have been somewhat lacking in performance and have not been able to deliver the same quality of light offered by tungsten lamps. This has certainly changed in recent years though – especially in relation to LED lighting.

Lishuai LED508AS-KIT
The advances in LED Lighting

The state of LED

LEDs (Light-Emitting Diodes) have been with us since the early 60s and were originally used for all manner of functions such as appliance indicators and other low-intensity applications. Since then this technology has advanced considerably and spread into all manner of light applications and today can be found in everything from car headlights to video displays. This has also resulted in a number of LED constant lighting solutions for video and photography – of varying quality. Whilst LED is a very efficient way to generate light, the light quality is not always the same from one system to another. Generally speaking, the more you spend on your LED lighting the more advanced it will be and will offer a much more accurate colour rendition.

This colour accuracy is known as a CRI (Colour Rendering Index) value which, according to Wikipedia, is a “quantitative measure of the ability of a light source to reproduce the colours of various objects faithfully”.

I don’t intend to research and write about this any further now but a LED lamp with a CRI value of anything above 85 is considered to be “very good” – whereas “very bad” would be at the other end of the scale down at zero. Whilst there are other contributing factors to the quality of light it’s the CRI value that will be often the quoted measure of quality. In video terms anything below 80 will start to cause colour inconsistencies in things like skin tones – especially when there are other light sources falling on the subject.

Lishuai LED508AS Kit

You can spend many, many hundreds of pounds on a single LED light panel so you’d be right to question exactly what you’d get from a Lishuai LED lighting kit which costs a shade under £500 plus VAT for a 2-panel kit (available from ProActive in Hemel Hempstead, Herts). And it’s not just two LED panels you’re getting for this money – it’s two screw-on diffusers, two heavy duty stands, two mains supply units, two battery chargers, four 4400mAh NPF-style batteries and a couple of bags to carry and store it all in.

Lishuai LED508AS Bag
What comes in the Lishuai LED508AS Kit

You’d be in your right mind to expect something quite sub-standard for this kind of money but Lishuai quote them as having a CRI value of just over 80. It’s not perfect admittedly, but in practice the colour rendition is extremely good when compared to the level of investment. Mores the point, your colour rendition is far more likely to be impacted by external light sources, operator error and the colour inconsistencies within the camera itself rather than an LED that’s churning out a CRI value of 80+.

CRI performance aside, there are far more important features and benefits of the Lishuai LED508AS-KIT that have impressed me so far. Each lighting panel measures around 33cm by 17cm and include 508 LEDs – 254 of which are rated at 3200K and 254 at 5600K. A rotary knob on the rear of the unit allows you to dial in your colour temperature from 3200K to 5600K – and anywhere in between. I’ve found this to be extremely useful in mixed lighting situations where it’s enabled me to make a choice between balancing to either depending on the situation. If there’s predominantly external natural light in a room just turn the colour temperature to 5600K. If there’s some really nice artificial lighting then it’s just as easy to balance to that – without the need to add gels or exclude available lights. I’ve also used them outdoors in bright sunlight to add a little fill to an interviewee’s face who was standing in shadow with a brightly lit building behind them. Because of their cool running temperature I could get the lights within a foot or so of the interviewee’s face – positioning the panels almost touching each other to give me a large light source to compete with the strong sunlit background.

The panels are also dimmable (flicker-free) from 10 to 100% which is a really neat feature when trying to create mood and shape to your subject. Lishuai rate the lights at 8500 Lux at 0.5m (falling to 2500 Lux at 1m) so these are not going to light up an entire theatre by any means. However, I’ve found them perfect for lighting interviews and talking-head pieces and on more than one occasion my subjects have been somewhat startled by their brightness.

Lishuai LED508AS knobs
Lishuai LED508AS Controls

The units can be either mains or battery powered (30.5w) – which is another really useful feature and demonstrates how much more energy efficient LED lighting is over traditional tungsten lighting. Running the lamps at full power – at a mid colour temperature – will give you around 2.5 hours using both batteries. There’s also a really useful battery power indicator in 25% increments so you know how much longer you have left before a recharge or switching to mains. In my mind though, 2.5 hours is plenty – and if you already have other kit running off the NPF battery system (I have a monitor that will) you can always cross-use these.

Lishuai LED508AS batteries
Running the Lishuai LED508AS on supplied batteries

Lishuai LED508AS Conclusion

Of all the features mentioned above the one thing that I instantly fell in love with was the lack of heat. I’ve also got an Ianiro 3-head lighting kit and whilst I still use this for some shoots the heat they generate is a serious negative. A lot of my work is based around talking head interviews which are often filmed in the subject’s place of work with limited space and no air temperature control. Once you have a couple of tungsten lamps running in these conditions it doesn’t take long for the videographer/talent relationship to diminish – which in turn doesn’t do anything for their performance and for my end result.

The only negative I have noticed with the lamps, which is not really a negative at all, is that I left the batteries on the lights at one point and also attached the mains supply. This caused the lights to pulse slightly. Once I’d removed the batteries the pulsing stopped instantly – so if you ever experience this you’ll know what to do.

I’m now into my third shoot using these lights and I’ve already started questioning the logic of packing my old tungsten lights into the car. On the last two occasions they’ve not been out of their case at all – relying solely on the Lishuai kit to illuminate. As there’s always been an additional light source at the location (either a window or an artificial source of some kind) I’ve been able to use this in order to create my 3-point lighting for modelling – and used the light’s variable colour temperature according to the source.

You might have guessed from this article that I’m more than chuffed with the Lishuai kit. It’s exceptional value for money and convinced me that my future lighting investments will be in LED. They are cool – in every sense of the word!

Kevin Cook F.Inst.V. (Hon.)

Notes: More information on the Lishuai LED508AS lighting kit is available from www.proav.co.uk

Varavon camera slider review

Varavon camera slider

Justifying the purchase of a Varavon camera slider

It’s all too easy to get dragged into buying shiny new toys in this game. The impulse to purchase is often overwhelming so you have to keep your wits about you in order to differentiate between your ‘needs’ and your ‘wants’. But, in a creative industry such as this, there’s often a very wide grey area between wanting something and needing it.

I’ve built up a pretty comprehensive DSLR shooting kit over the past year or so. Whilst there’s a few things in there that are definitely ‘wants’ rather than ‘needs’, so far I’ve been pretty much self-contained on every filming commission I’ve come up against. However, there’s been one “grey area” item that’s been missing from my set-up until now – and that’s a camera slider.

I know I’m pretty late to the party on this but on the odd occasion where I believed I really had to have a slider on a shoot I’ve been able to beg, steal or borrow one. Over the last year I’ve had a play with a few different makes and models and been left both hot and cold by the experience. I’m sure some of my less positive experiences with sliders have been due to my inexperience with that particular system but there are definitely good and bad examples out there.

Another thing that I’ve learnt is that sliding, as with every other camera technique, becomes easier the more you do it. I guess I’m really leading up to an attempt to justify my purchase but, if I was going to perfect this technique, I really did “need” to add a slider to my regular kit.

The inspiration to slide

We are all exposed to a constant stream of inspirational examples of video and film production. For a long time now the showcase for works has no longer been limited to just TV and cinema. Video is everywhere – and there are a lot of very talented people creating it. Great techniques and creativity therefore spread quickly and widely around this creative community. Platforms such as Vimeo and YouTube not only help spread these creations around the community but, more importantly, they provide the facility for admirers to pose questions to producers and for them to share how they achieved their masterpiece.

The use of sliders to change the camera’s perspective mid shot is just one of the techniques which have inspired me. Sliders can be used to move the camera closer to the subject too, with or without tracking focus, but the draw for me is the slider’s ability to add temporal parallax to my images. There are some magnificent examples out there and the reason we all love them is that this technique gives us another dimension and depth to our images.

Temporal Parallax

With two eyes set apart we perceive the world around us in 3D. Known as ‘Spatial Parallax’ – this enables us to judge where we are within our surroundings. ‘Temporal Parallax’ enables us to give perspective information to the viewer using the two-dimensional image created by a camera. Instead our two eyes (or two lenses of a 3D camera), temporal parallax is added by a slider by moving the camera along a perpendicular path to the subject and giving the viewer a differing point of view within the same shot.

Adding foreground and background information within the shot adds even more depth information to the viewer. Imagine you are on a train looking out of the window. Anything near the train whizzes past your view whilst items in the distance appear to move by slowly. Your brain takes in this information in an instant, calculating where foreground and background objects are now and where they were a moment ago and from this it interprets depth.

Sliders obviously don’t travel the same distance or speed as a train, but even minor movements can generate the same depth experience for the viewer – especially if you work at including foreground and background information in your framing.

To BVE with a mission

I finally satisfied my slider lust during a visit to BVE London in February. One of my missions there was to look at and price up the current slider options out there and I settled on the Slidecam S 900 from the Varavon range supplied by Proactive in Hemel Hempstead, Hertfordshire.

Varavon Slidecam S 900 with DSLR rig
Varavon Slidecam S 900 with DSLR rig

As I mentioned earlier I have tried out a number of other solutions. I’d long since ruled out the various Igus linear rail systems (or even building a DIY Igus slider) because I didn’t have a lot of faith in the aluminium rail construction. With the rails exposed I couldn’t trust myself not to give it the occasional bash and dent. If you’ve ever used a slider with a dent or protrusion you will know what I mean. Everything is magnified through the lens and even the tiniest imperfection can cause your slide to come to a sudden unplanned stop or cause an unwanted jolt in your slide.

Whilst the main body of the Slidecam S is made from the same lightweight aluminium (total weight of the unit is just 2.56 kg), the roller bearings themselves run along much more durable chrome-coated aluminium shafts. These shafts are also protected from external bumps, damage and dirt as they are located within a recess.

Protected slide shafts on the Varavon Slidecam S 900
Protected slide shafts on the Varavon Slidecam S 900

The carriage itself has a three-roller bearing assembly which gives very smooth and constant slides. Within the kit you also get a neat little oil applicator which clicks into the shaft recess and enables you to lubricate and clean the path at the same time. And because this is a recessed path you don’t need to worry about oiling getting everywhere.

Atop the carriage you have a 3/8” screw thread with for mounting a flat base tripod head. Proactive have put together a bundle consisting of the Slidecam S 900 with an E-Image fluid action EI-717AH head which comes in at £260 plus VAT. However, if you have your own flat-base head, the Slidecam S 900 can be bought on its own for £225 plus VAT.

There are various mounting screw points (both ¼” and 3/8”) on the main body to attach the slider to tripod/s or other threaded mounting solutions. The slider can therefore be used horizontally or vertically – or indeed under-slung if you have the right mounting grip to attach it. The unit also comes with its own screw-on adjustable legs which attach to each end of the slider for table-top or floor use. Each leg unit has two independently adjustable and lockable rubber feet to help stop the unit from slipping when used on a polished surface.

Legs and attaching points
Legs and attaching points

Varavon actually produce a range of sliders for different payloads and applications. This starts with the Slidecam Lite (600mm and 800mm lengths), then the Slidecam S (900mm, 1,200mm and 1,500mm), then the heavy duty Slidecam EX Plus (800mm and 1,000mm) and finally the super-heavy duty Slidecam ENG (only available in 1,000mm). Whilst an 800mm Slidecam Lite would have probably been perfectly adequate for me with its 9kg payload (and lower price tag at £230 plus VAT with head), I felt that the extra width of the ‘S’ version would offer greater stability when my DSLR was fully loaded. The ‘S’ can handle anything up to 19kg so more than I would ever need with my present shooting kit.

It’s also worth noting that Varavon also produce a unique curved slider, the Slidecam Arc 90. Though I’ve not had a play with this I can see where this product might come in handy. But as yet it’s not made it on to either my ‘want’ or ‘need’ list.

Get a-head

I must admit that I’m a bit of a snob when it comes to tripod heads being a proud owner of both Vinten and Sachtler sets of sticks. However, I must also admit that with the E-Image EI-717AH Flat based head you get a lot of product for very little money (£55 plus VAT if bought separately). As both my tripod heads have ball-levelling mounts they are unsuitable for use on the slider without an adapter. These adapters are not a great solution as they tend to mount the camera in a much higher position which, in my mind, could make the whole assembly unstable. The additional E-Image head was therefore a very wise investment for me.

The E-Image screws directly on to the slider carriage and can be roughly tightened using the carriage’s Easy-Mount dial. Whilst this is a handy means of quickly attaching the head to the carriage you will definitely want to tighten the head even further. This is achieved by locking the head’s pan position and then screwing it down further to the carriage until it’s firmly fixed.

The head comes with a slide-locking plate for attachment to the camera which allows you to quickly attach and remove the camera whilst on a shoot. Whilst the head’s optimum payload is somewhat less than the slider itself (6kg), it is still well within the weight of my fully-pimped DSLR camera.

The head has a fluid damping drag system to ensure smooth pans and tilts as you slide. It also incorporates a built-in counter balance system to give you increased control of camera moves – and the ability to lock either or both pan and tilt actions. In addition the head also comes with an in-built bubble level and a really handy telescopic pan bar so you can operate the entire set up from some distance.

The E-Image EI-717AH Flat Based Head
The E-Image EI-717AH Flat Based Head

Yes you do get all this for £55 plus VAT so it’s not fair to compare it to the likes of my Vinten and Sachtler. It’s simply not in the same league in terms of performance and price but it is more than adequate for use as a slider head. When I first tested the head it had spent a few cold hours in the boot of my car and was as stiff as a board when trying to pan or tilt with it. Though all tripod heads will perform differently under colder conditions operating the E-Image was a real struggle. Brought indoors and warmed up to room temperature it loosened up nicely.

Varavon camera slider Conclusion

Like most other sliders this combination works best when laden. The head is quite heavy in itself (1kg) so with camera on top you have enough resistance to create wonderfully smooth slides along the entire length.

There are some nice little touches with the Slidecam S which are missing from some of the other options out there. For instance, along the entire length of the slider there’s an inch measure gauge so you can note and repeat the distance of travel within a shot. I’m sure it wouldn’t take too much engineering to knock up a means of attaching an adjustable stop of some kind to the slider so you can limit the range of movement more precisely.

The carriage also comes with its own bubble level which is really handy for either ensuring your slider is dead level or even for making it just off level and letting gravity slide the camera downhill. And though it’s never a deal breaker the sliders comes in a neat and robust carry bag.

The thing I like most about this Slidecam S bundle is its robustness. I can be a pretty clumsy oaf at times but I can’t see anything flimsy or susceptible in the construction of either slider or head that would yield under normal use. In this game it’s very hard to come across any product that boasts, “Built to last”, but I think Varavon could quite rightly claim that on this occasion.

I’m sure the Slidecam S will satisfy my needs for some time. However, one of the sliders that I used last year was motorised and I have to admit I really liked that option. Being able to set variable speed to the slide was very handy, especially when you have the slider positioned where you cannot easily move the camera smoothly and to its full extent. Thankfully Varavon have introduced the Motorroid attachment for their straight sliders which I’ve no doubt will be added to my kit bag in the not too distant future.

The Motorroid is available in three kit versions – the L1000 (£295 plus VAT), L1500 (£315 plus VAT) and L2000 (£325 plus VAT). These are all the same unit but vary according to the pulley belt length which is defined by the length of slider it’s to be attached to. The unit comes supplied with AC Adapter and with an optional 12v, 4800mah battery at £45 plus VAT – added to which Varavon are also producing a time-lapse controller called the Timeroid which will be announced soon.

If you are still sitting on the slider fence but really want to add this new dimension to your productions then check out the Varavon camera slider range and get sliding.

Kevin Cook F.Inst.V. (Hon.)

Notes: For further details and specifications please visit www.proav.co.uk. You should also check out this Olivia Tech Video on the Motorroid – www.vifocam.com/oliviatech-motorroid-800-special-edition-28-off/

Edius 6.5 – a serious alternative to the obvious

Video Artisan’s route to Edius 6.5

There’s plenty of choice these days in professional NLEs (nonlinear editing systems) and pretty much all of them will do the job at hand. My guess is that the professional market share today would probably place Adobe Premier at the top of the pile closely followed by Apple’s Final Cut. However, sitting behind these are some amazing NLEs – and in my view none more so than Grass Valley’s Edius.

New Edius 6.5 NLE
The New Edius 6.5 NLE at Video Artisan

It is true to some extent that editing systems are like football teams. Once you pick a team as a child (more often picked for you!) it’s is virtually impossible to switch allegiance later in life. It becomes part of who you are. Whilst NLE-choice doesn’t exactly follow this there is undoubtedly a certain amount of loyalty amongst users and it takes a fair bit of crappy development and bad PR for an NLE manufacturer to lose users to another manufacturer. It does happen – as per Apple and their introduction of FCPX (more on which later) – but once you have your head around the way an NLE works it’s hard to switch.

I guess this is a major part of my reasoning to upgrade my own, ageing Edius 4.6 editing system up to the latest version (Edius Pro 6.52 to be precise) housed in a shiny new and beefy PC. Over the years I’ve grown to love Edius. Whilst my old system didn’t have enough grunt to handle DSLR files natively (I had to convert the MOV files to Canopus HQ files to make them workable), I’ve rarely thrown something at the timeline that Edius has been unable to handle. Whilst other NLEs have caught up with Edius in this respect I still think it’s still hard to beat for its stability, simplicity and source compatibility.

The latest version has built on this reputation and on boot-up carries the legend… “Edius Pro 6.5 – Edit Anything”.

Why Edius 6.5 and not the obvious?

Even with my prejudices it would have been foolish of me not to consider the NLE market leaders. Over the years I’ve had a reasonable insight into all of them – and all have their strengths and weaknesses. But before you get that far one of the first questions for anyone facing this choice is… Mac or PC?

The computer platform has a bearing on your decision even though Premier and Avid (more on which in a moment) are true cross-platform solutions. FCP and Edius on the other hand are platform specific (Mac and PC respectively) but will work on opposing platforms under emulation software (BootCamp on a Mac and Hackintosh on a PC). However, I don’t know anyone who is doing this seriously – so your computer platform choice will narrow your choice either way.

Ruling out any Mac-only option was easy for me. I know this is going to upset a few Mac-heads out there but whilst they make pretty machines that work very well – Apple have demonstrated to me a complete lack of respect and understanding of their professional users. Whereas we all accept that the first editions of any upgrade can be a bit flaky to say the least, the first version of their latest software (FCP-X) was a complete and utter pile of poo and drove many of their users away to other systems. The initial omission of backward compatibility with projects created in previous versions of the software showed that they simply do not understand how this industry works and I doubt they want to understand it either. I think they’re far too involved in the consumer markets of iPhone/Pod/Pad/Tunes to set aside the kind of resources needed to support a professional product. I know that FCP-X has come on since then but that move alone told me that Apple wouldn’t be that interested in me as a user.

Furthermore, I also think that FCP is the least user-friendly of the bunch. If you look at any of the online support forums there’s a huge amount of user questions posted about some of the more basic functions of FCP. On the IOV’s forums there are probably four times as many threads about FCP as there are about any other NLE – despite the fact that it’s not the most widely used system. That either means that the majority of FCP users are either thick or too lazy to read the manual – or the system itself is not intuitive. I strongly believe it’s the latter.

Avid’s main strength is that it’s widely used in the broadcast and film industries. Whilst the entry price is very similar to the others if you opt for an ‘Avid Approved’ system its going to set you back a few bob (more than my budget allowed for). On the plus side, because they were one of the first NLE manufacturers to aggressively market themselves to the education market there’s a massive user-base who have learnt their editing craft at college or university using this NLE.

Though Avid is the system I have least experience with, to me it is still the nearest thing there is to an ‘NLE standard’. Cost of ownership and upgrade paths, and a poorer take up at my end of the market, did leave me feeling that I would be on my own and without the familiar surroundings offered by Edius 6.5.

Premier was a more difficult option to discard as it has come on leaps and bounds in recent years. My first NLE experiences were with the early incarnations of Premier so I know it quite well – and it fitted in budget wise. The entire suite of Adobe tools (PhotoShop, AfterEffect etc) work beautifully together and, to be honest, I’m not ruling out installing then entire Production Suite at some time in the future to run alongside Edius.

I guess you could say the old allegiances played a vital role in my final decision – and they probably did. However, I genuinely think that those allegiances have been formed through years of trusting Edius to do the business for me. Decision made!

Self-build or Specialist-build?

It was then a matter of making the choice between self-build PC or buying a turnkey solution from a specialist NLE builder. I didn’t take long over that decision. Whilst there was a considerable saving to be had in buying the bits and slapping them together I rather like and value the additional peace of mind and support offered though a specialist system builder. There are quite a few good companies out there who build turnkey NLEs but the one that always floats to the top for me is DVC in Hove. They have been around for yonks and have a mighty army of satisfied clients out there – and that doesn’t come about through building shoddy systems that are not suitable for use in a professional edit suite. They are also great listeners. I visited their stand at BVE North to spec up and price a system and was dealt with by Ringo (DVC’s famous super sales guy and technical guru) who listened intently to me talking about the type of productions I was producing, what I was shooting on, other applications I’d be putting the system to and how content would be distributed and stored.

I explained that the majority of my work would be short promotional films that were generally aimed at website distribution but equally likely to be turning out on DVD and/or Blu-ray. I also provide freelance editing services to other production companies and agencies so the system had to be just as comfortable in dealing with longer programme formats and able to ingest material from both analogue and digital sources. My NLE would need enough system storage to handle this without offloading projects to temporary archive. Speed and reliability were major ‘wants’ of mine – all of which had to be provided within my £2.5k budget.

Ringo instantly pointed towards a DVC Ivybridge System – and started adding on all the specifications and accessories that were needed for my requirements into his quote calculator. After a bit of pushing and shoving things around to match my spend, the final machine consisted of an Intel® Core™ i7-3770K Processor 3.5GHz with Hyperthreading (8M Cache, up to 3.90 GHz) running the Windows 7 Pro 64 bit operating system. With 8GB of RAM, 8TB of SATA HD storage and a 128GB SSD system drive – this little beast would eat it’s way through pretty much anything I cared to throw at it – with ease!

DVC helped do a few more tweaks to the standard packages to help the budget work – such as dropping the monitors (I’d use my current ones) and adding a Black Magic Design Intensity Pro card. This would add HDMI, component, composite and SVIDEO in and out to the already included Firewire, USB3, Network and plethora of memory card connections. With Edius at its heart this system really should be able to edit anything.

The Delivery

I opted for delivery rather than collection from their Hove offices mainly because I was being tight fisted. It was cheaper for them to ship it to me rather than drive there to collect – but I can see why some people prefer to collect and get a quick hands-on introduction session from the DVC guys.

With my Edius experience I was pretty sure I wouldn’t struggle too much with the software. But if I had been a complete Edius virgin the free training DVDs that are included with the system would pretty much have had me editing from day one. These films are produced by DVC’s MD, David Clarke (he who knows everything that needs to be known about Edius and NLEs) and take you through all the steps from capture through to delivery in a series of simple to follow tutorials.

I don’t mind confessing that I found even the basic stuff very worthwhile viewing. These include a general tutorial DVD on Edius 6 – plus an update DVD on the new additions and improvements of Edius 6.5. Thoughtfully DVC also installed copies of these on the system itself – with an easy to navigate HTML indexing system so you can quickly and easily study specific functions and processes of Edius.

With all these resources to hand there really is no excuse for not being able to get editing straight away. Nevertheless I’m like every other lazy person out there and often prefer to pick up the phone and ask someone rather than reading the manual (or in this case watching the video). This is where buying from a specialist system builder really pays off as I’ve already solved a couple of simple problems by making a quick call to Ringo. I’ve never been made to feel like I’m a pain, or told to RTFM – and on both occasions his vast knowledge has instantly pointed me to the solution.

Put to task

The system was delivered in a big cardboard box – which was duly ripped open and installed in the edit suite. I have a number of projects about to start and one which is about to go into its post production phase – but before all that I had to transfer over projects that were already under way on the old system so it took a good day to get everything networked and talking to each other nicely.

It was great to know that my old Edius 4.6 projects would work perfectly in 6.5 – with only some minor changes to Xplode transitions which are no longer supported. I’ve also got to re-link some media as I will now be working with DSLR files in the native format rather than the Edius HQ conversions that I needed on the old system. I think that’s a small price to pay though. I’ll also be keeping the old system connected up for a while as there’s bound to be things on there that I’ll be needing later (such as all the fonts I had installed that are not on the new system). And besides, the long term plan for the old system is to keep it networked and working doing transfers, encoding, uploading, archiving and copying. There’s no rest for the decrepit here at Video Artisan!

I guess this story isn’t over yet as I’m about to start putting the new system to proper use – but I have every confidence in it. I’ve also grown to have every confidence in Edius being able to do everything I demand of it – and every confidence in being able to lean on DVC should I hit any problems or need a quick chat.

I’m not sure any NLE user could ever want any more than having total confidence in their system – and I’ve got it. Lucky old me : )

Kevin Cook F.Inst.V. (Hon.)
Video Artisan

New Year – New Edit Suite

After a year producing some amazing films for some amazing clients, I thought it was about time to give Video Artisan a little New Year treat in the form of a nice shiny new edit suite from those ever so knowledgeable chaps at DVC.  Even though my current 4.6 based Edius edit suite has turned out the work without a hitch the workload that looks like it’s going to be landing on my desk this year calls for something that packs a little more punch.  That said, the old edit suite is not being put out to grass quite yet as it’s going to be doing some of the lighter work that seems to pile up at the busier times.

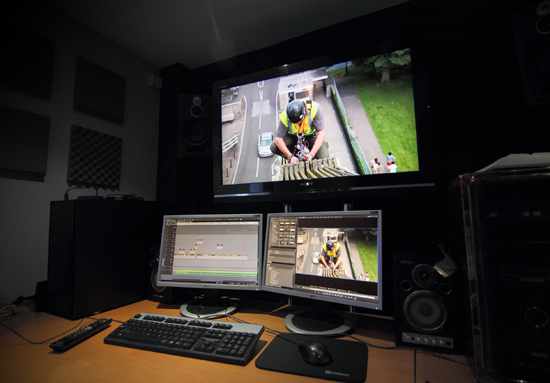

Our Edius Broadcast video production facilities in Loughton
Our Edius Broadcast video production facilities in Loughton

Why chose an Edius edit suite?

I am a Grass Valley Edius man through and through these days – albeit that I’ve had varying levels of experience with just about every editing system out there.  My first entry into non-linear editing was way back with a Fast AV Master capture card running alongside a very early version of Adobe Premier (I think it was 1.2).  However, before that I honed my editing skills on a three machine UMatic edit suite with a load of other electronic gizmos that were needed to perform basic shot transitions and effects.  Oh how times have changed!  So too have the costs as that UMatic edit suite set us back about £20k which was an awful lot of money back in 1986!

UMatic Edit Suite
UMatic Edit Suite in full swing – driven by the delectable Tiffany

Though I could have coped with staying with the old edit suite for a few more months I really longed for a few of the benefits of the latest version of Edius software and a beefier computer to house it in.  For instance, the old system was a little lumpy (understatement) when dealing with the Full HD MOV files created by the Canon 5DMkII.  To overcome this I would convert all camera files to the Canopus HQ for editing.  Whilst these files were easy to handle the process of having to codec convert the files did slow down the editing process somewhat.  It also resulted in using up much more HD space than was needed. The new system will be able to cope with four or five layers of Full HD – in real time.  Yum yum!  It should also speed up the online delivery encoding process which is another thing that seems to have taken up quite a bit of my 2012.

There are plenty of new tools that I’m going to enjoy playing with too in Edius 6.5 – and probably the most notable over my old software is the new layout tool. But there’s a whole host of improvements that will make the editing process quicker and easier…

  • Colour correction tool supports 10-bit colour depth
  • Export sequence with alpha channel
  • Native RED (.R3D) support*
  • Improved XDCAM/ P2 data transfer
  • 3D (stereoscopic) editing
  • AVCHD 2.0 support
  • AVCHD 3D export support
  • EOS movie support (ALL-I (I-only), IPB)
  • Camera RAW format support
  • Filmstrip view in Timeline
  • Built-in loudness meter
  • Built-in shake stabilizer
  • 720p Blu-ray authoring support
  • Flash F4V export
  • QuickTime HQ/HQX codec (Windows/Mac)

The PC system is based on an Intel® Core™ i7-3770K Processor 3.5GHz with Hyperthreading (8M Cache, up to 3.90 GHz) running the Windows 7 Pro 64 bit operating system.  With 8GB of RAM, 8TB of SATA HD storage and a 128GB SSD system drive – the beast should fly and chew it’s way through the kind of video production work I’m attracting.

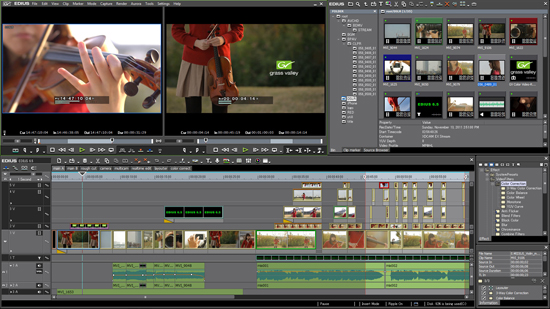

Edius 6.5
The new edit suite based on Edius 6.5

Why choose DVC for building my new edit suite?

I did weigh up the options and various sources for getting the new edit suite built – and even considered building the thing myself.  To be honest, the latter choice went in and out of my mind quicker than lightening.  Whilst I’m pretty sure I could put something together after watching a few YouTube videos and reading up on the subject – I’m a great believer in leaving things to those who really know what they are doing.  I also value the benefit of having someone to go back to if the thing didn’t work (a distinct possibility with home-build systems). I also really value the kind of support that an experienced NLE system builder can provide ‘post sale’ – and there are very few that have as much experience as the folk at DVC.  They also happen to produce some pretty comprehensive user guides with their systems which will no doubt be handy in the first few months of use.

The new system is now in the process of being built and it should be with me within the next 10-days.  I’ll be giving you updates on this and a little more background on my choice of system as soon as I’ve got it installed in the edit suite.  In the meantime, I’m gagging to get my hands on it and start using it on my next corporate film.

Meet the new member of the Video Artisan video production team

I’ve been dead chuffed with the performance of my Canon 550D but I have to admit to something – I’ve been suffering from ‘Sensor Envy’.  With so many of my comrades shooting on full-frame sensor cameras I always felt a little shy at the stools with my 550D’s cropped sensor in hand.  It’s not that my video production clients have had any complaints, but I have to admit that size does matter when in comes to a man’s sensor!  So – I’ve been shopping and bought myself a rather tidy Canon 5DMkII.

Canon 5D
Canon 5D MkII ready for action on the next corporate video production

I’d obviously weighed up a number of other options (including the 5D MkIII and Nikon D800) but there are other near future “investments” afoot here at Video Artisan so I opted for something that was going to get me into a full-frame sensor at a less than full-frame cost.  My only challenge was finding someone looking to rid of theirs who hadn’t raced or rallied it – and local IOV member Dave Bass of Pro-motion Video Productions of Hadleigh, Essex came up with a corker.  He’s just bought a shiny new MkIII so the MkII was up for grabs – and I grabbed it.

The first task on getting it back to the studio was to install the Unified version of Magic Lantern.  I’ve got this installed on my 550D and have to admit that I’d have not given the 5D a second thought if it wasn’t possible to install this hack on it. It turns the camera into something usable and more akin to a proper video production tool.

Magic Lantern on a Canon 5D MkII
Magic Lantern hack installed and running

It’s especially helpful in addressing the shortcomings of the audio side to DSLRs enabling you to control digital and audio gain levels, assign channels to external and internal inputs and allows you to send audio out through the USB port for monitoring.  There are also a range of facilities and tools for controlling and tweaking the video – including live histograms, waveform monitors, ISO range changes, bitrate control…. in fact far too many to list here.  There’s even a HDR video and stills utility – yet to be understood and tried by me!

The full install and firmware update process was a bit of a rigmarole (nothing to do with Magic Lantern) which I’ll not go into here – so email me if you are thinking of going down this route.  It is well worth the leg work and the stress of the warnings all over the Magic Lantern site saying that you might “brick” your camera if you don’t install things correctly.

So – the 5D MkII is now part of the team.  Don’t bother asking about whether I want to get rid of the 550D as its not going anywhere.  There are still some jobs where that little beauty works best.

If you are in need of a 5D shooter you know where I am!
